Europe 35x7 Compacted Strand Rotation Resistant (Both Galvanized and Bright)
35x7,Compacted Strand Rotation Resistant,Galvanized and Bright
Specification: EN 12385-4
Applications：Offshore crane rope, Deck crane rope, Pillar crane rope, Crane rope, Main hoist rope.

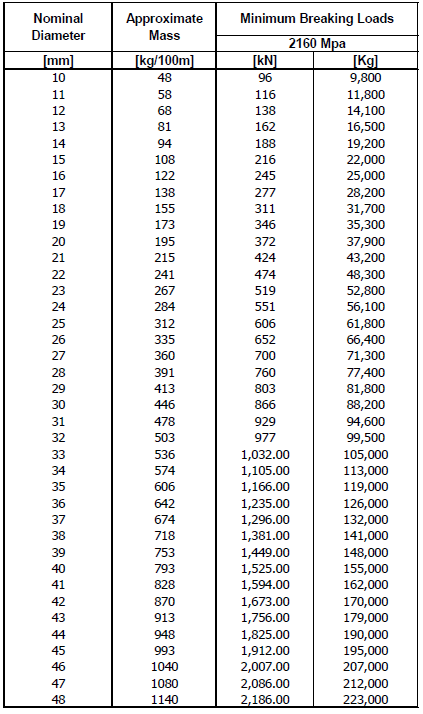

| Nominal Diameter | Approximate Mass | Minimum Breaking Loads |
| 2160 Mpa |
| [mm] | [kg/100m] | [kN] | [Kg] |
| 10 | 48 | 96 | 9,800 |
| 11 | 58 | 116 | 11,800 |
| 12 | 68 | 138 | 14,100 |
| 13 | 81 | 162 | 16,500 |
| 14 | 94 | 188 | 19,200 |
| 15 | 108 | 216 | 22,000 |
| 16 | 122 | 245 | 25,000 |
| 17 | 138 | 277 | 28,200 |
| 18 | 155 | 311 | 31,700 |
| 19 | 173 | 346 | 35,300 |
| 20 | 195 | 372 | 37,900 |
| 21 | 215 | 424 | 43,200 |
| 22 | 241 | 474 | 48,300 |
| 23 | 267 | 519 | 52,800 |
| 24 | 284 | 551 | 56,100 |
| 25 | 312 | 606 | 61,800 |
| 26 | 335 | 652 | 66,400 |
| 27 | 360 | 700 | 71,300 |
| 28 | 391 | 760 | 77,400 |
| 29 | 413 | 803 | 81,800 |
| 30 | 446 | 866 | 88,200 |
| 31 | 478 | 929 | 94,600 |
| 32 | 503 | 977 | 99,500 |
| 33 | 536 | 1,032.00 | 105,000 |
| 34 | 574 | 1,105.00 | 113,000 |
| 35 | 606 | 1,166.00 | 119,000 |
| 36 | 642 | 1,235.00 | 126,000 |
| 37 | 674 | 1,296.00 | 132,000 |
| 38 | 718 | 1,381.00 | 141,000 |
| 39 | 753 | 1,449.00 | 148,000 |
| 40 | 793 | 1,525.00 | 155,000 |
| 41 | 828 | 1,594.00 | 162,000 |
| 42 | 870 | 1,673.00 | 170,000 |
| 43 | 913 | 1,756.00 | 179,000 |
| 44 | 948 | 1,825.00 | 190,000 |
| 45 | 993 | 1,912.00 | 195,000 |
| 46 | 1040 | 2,007.00 | 207,000 |
| 47 | 1080 | 2,086.00 | 212,000 |
| 48 | 1140 | 2,186.00 | 223,000 |
